Truxor Amphibian Machine
VJ Engineering is the Authorized Agent of DOROTEA MEKANISKA – Sweden for the country of Malaysia, Singapore & Brunei.
VJ Engineering has been appointed as DOROTEA MEKANISKA’s Authorized Representative / agent for Malaysia, Singapore & Brunei, selling and providing services for Dorotea Truxor Amphibian Machinery and Doro Cutter.
Truxor
Dorotea Mekaniska AB develop, manufacture and sell tools and Truxor amphibian tool carriers for works in lakes, canals, wetlands and sensitive areas normally inaccessible to conventional Machines. Dotorea Mekaniska provides the ultimate solutions for working with cutting and collecting aquatic weed and reed growth, dredging, excavating, oil spill – clean up and much more.
Truxor is a multifunctional amphibious machine available with a wide range of tools and accessories. The amphibious nature of the Truxor allows access to areas normally inaccessible to conventional machines. Truxor is the ideal solution for work in lakes, canals and other wetland habitats. The weight distribution system gives low ground pressure and floating capacity to the machine, offering unique opportunities for work in sensitive environments.
Truxor’s flexibility, allows it to operate on water, in the shallow margins and on dry land at the waters edge. It’s lightweight construction is perfect for working in sensitive environments such as nature reserves, conservation areas, canal banks even golf courses where conventional contractor’s machinery may cause damage. The versatility of the Truxor allows it to effectively carry out a wide range of tasks including reed cutting and collection, silt pumping, dredging, channel excavation, oil spill clean-up, and much, much more.
Truxor’s precision and flexibility give the operator full control in both narrow channels, around bridges and other water hazards. The machine turns easily on its own axis and will stop in less than half a metre from full speed forward.
Tools can be changed quickly and one person can easily operate the machine.
The hydraulic pump has capacity control which means that the total power drain of the hydraulic output is balanced according to the output of the diesel motor. This makes it possible to use tools that require more power. Truxor is also equipped with a suction- type cooling fan with better cooling capacity and lower noise level.
Salient Features of Truxor 5000/5045:
- Ergonomic operator’s seat
- Load-sensitive hydraulic system (LS)
- Filter system of the air intake to the cooling unit
- A wide range of tools
- Equipped with work lighting
- Hydraulic tool operation
- Electrically heated operator’s seat
- Adjustable hydraulic outlet flow
The movable driver’s cab is hydraulically adjusted and works as counterweight during heavy lifts in water (as shown in the above images).
The dashboard shows hydraulic pressure, fuel level, motor temperature, hydraulic oil temperature, a chronometer as well as the engine speed in RPM.
The DM bracket makes tool change easy.
Easy-to-access diesel tank, radiator and hydraulic oil tank for control and refilling of fluids.

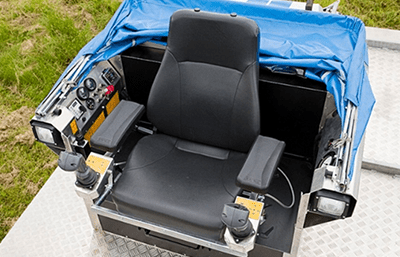

Ergonomic operator’s seat with joysticks for operation/control of the machine and its tools.

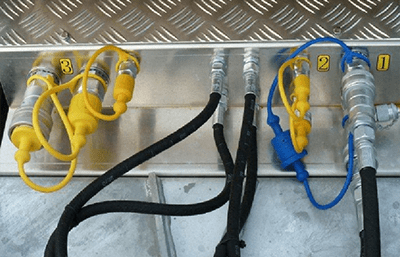

Hydraulic outlet for operation of tools. Operated by an on/off joystick as well as min/max tool speed.
Open-able engine casing with a tool box inside the engine compartment.
The air intake to the radiator is equipped with a filter that prevents the cooler cells from being blocked by insects and foreign particles.

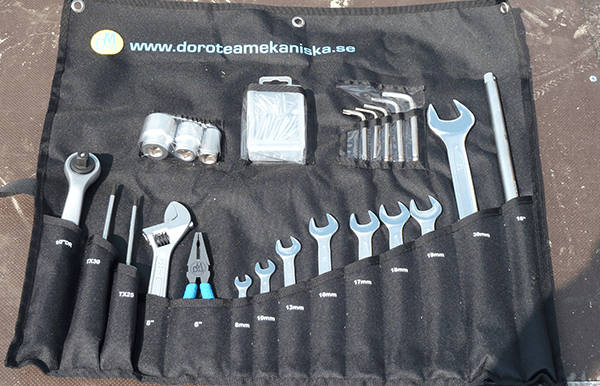

Tools for day-to-day service are included.
The Truxor’s weight distribution system minimizes ground pressure. Truxor can be driven across a lawn without any damage to the grass.

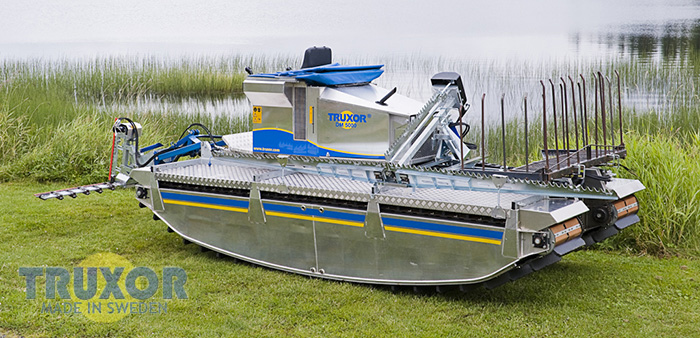

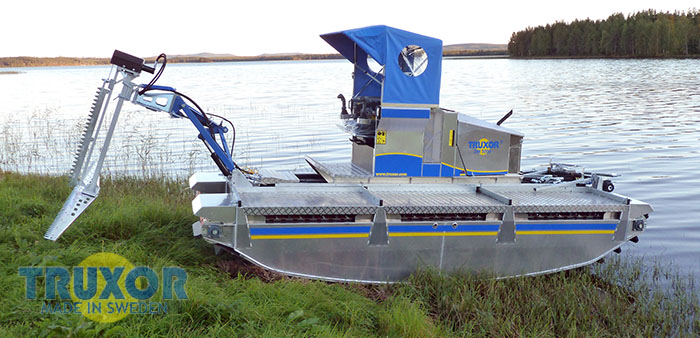

Truxor 5000
The Truxor DM 5000 is a reliable and versatile machine, the result of more than 20 years of designing amphibian equipment.The Truxor DM 5000 is a reliable and versatile machine, the result of more than 20 years of designing amphibian equipment. Truxor DM 5000 is a good choice for cutting and collection of water plants. When using more power-demanding tools (such as dredge pumps/flail mulchers), the capacity is a little lower than the capacity of Truxor DM 5045. The machine has a CAN bus technology system which makes it easy to operate.

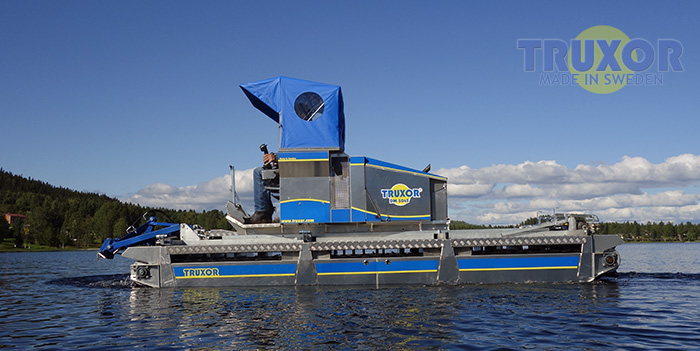

Truxor 5045
The Truxor DM 5045 is a professional high-performance machine. It has a Turbo diesel 45 hp motor. The larger motor with higher torque provides more power for the machine and its Tools.
The Truxor DM 5045 has a hydraulic system equipped with a patented cyclone tank that offers more efficient ventilation thereby ensuring slower oxidation of the oil. The weight has been reduced thanks to the smaller amount of oil used, which increases the performance of the machine.
The Truxor DM 5045 has a hydraulic tank with a level gauge as well as an automatic motor stop when the oil level gets too low. This significantly reduces the risk of leakage, which is an advantage in water reservoirs and other sensitive areas where oil spills must be avoided.
Tools for Truxor:
- Cutter units
- Collection rakes
- Excavator unit
- Dredge pump
- Equipment for cleaning up oil spills
- Wood chipper
- Miller
- Hydraulic hammer
Accessories for Truxor:
- Propeller drive
- Trailer
- Chain gear
- Transport bed
