StormX Netting Trash Trap – End of Pipe Capture System to capture trash at even 5mm size
VJ Engineering is the Authorized Agent of Storm Water Systems – USA for the country of Malaysia, Singapore & Brunei.
VJ Engineering has been appointed as StormWaterSystems’ Authorized Representative / agent for Malaysia, Singapore & Brunei, to market, sell, install and to provide after sales services for StormX products.

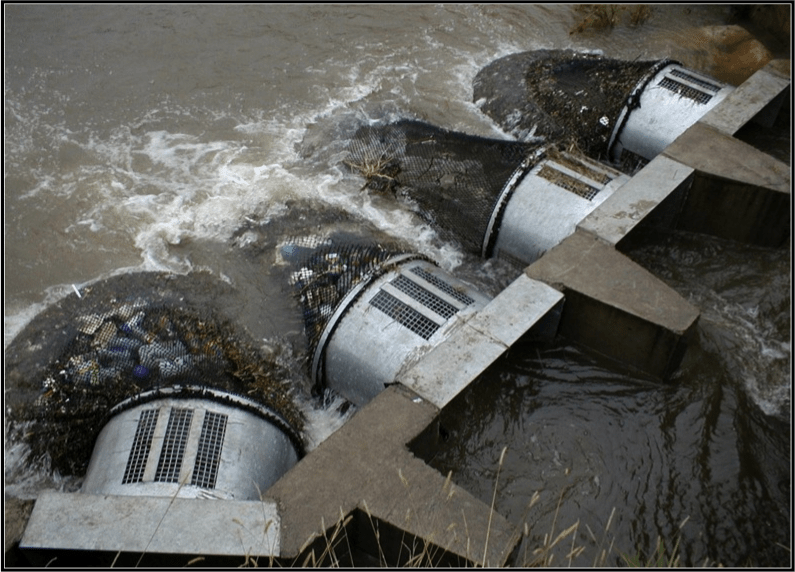

StormXTM is an End of Pipe Capture System, engineered to handle the power of storm water runoff and is the perfect tool for capturing both floatables and non-floatables at most urban hot spots. Commercial grade, reusable nets provide full capture of gross pollutants as small as 5 mm, including organic materials (such as leaves) that could reduce the levels of phosphorous and nitrogen in our water. This economical solution to litter and debris in stormwater runoff is highly effective for “first flush” to prevent flooding, built-in overflows allow heavy runoff to flow unimpeded.

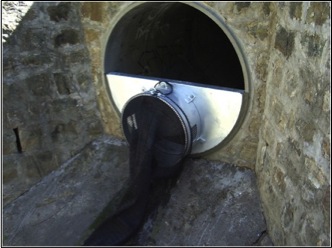

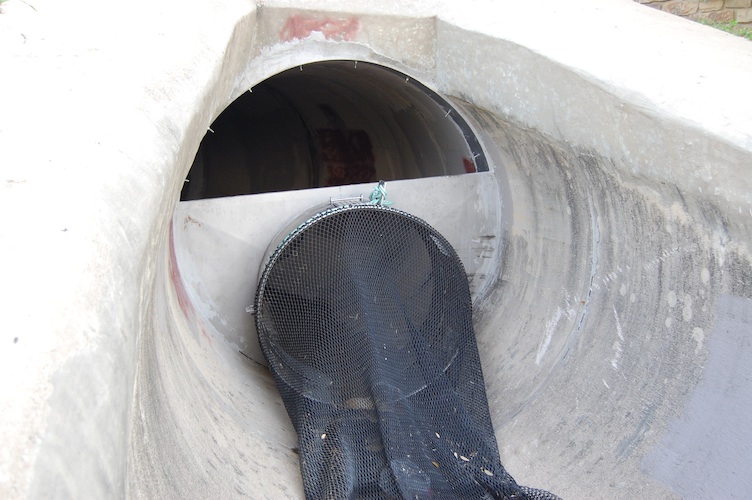

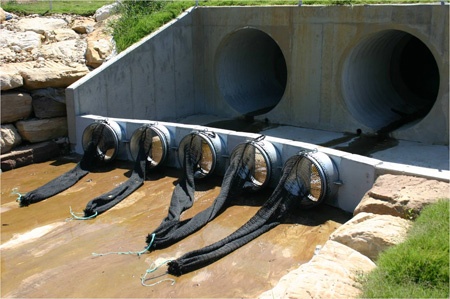

StormX™ Netting are available in reusable HDPE or disposable nylon materials. StormX is the ideal end-of-pipe solution for capturing floatables in combined sewer overflow applications. It is suitable to be installed at Weir, Full Pipe as well as Half Pipe. Additionally, StormX has a proven track record of success with zero failures for more than 15 years.
- Highly effective for “first flush”
- Captures gross pollutants as small as 5 mm
- Overflows designed in hubs and weirs allow heavy runoff to flow unimpeded
- Stainless steel hubs are cast in concrete orattached to existing pipe ends/outfalls

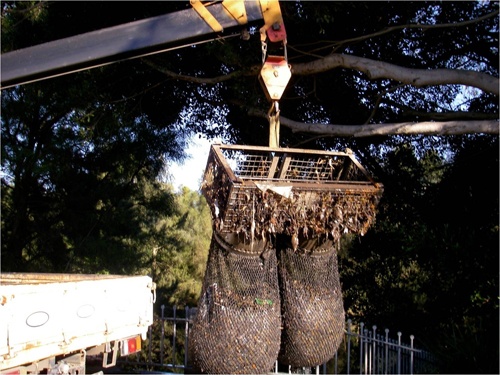

- Commercial grade reusable nets easily detach from hubs for emptying
- UV stabilized HDPE nets outlast Nylon nets
- Assists with sediment fallout and collection without causing flooding
Statistics and Construction
- Standard sizes are 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60” and 72” and custom sizes are available

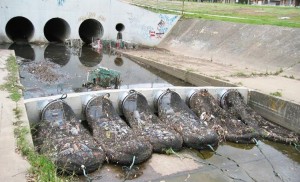

- Weir configuration best serves outfalls larger than 70″
- Easily adaptable for various site specifications
- 304/316 stainless steel hubs made in USA

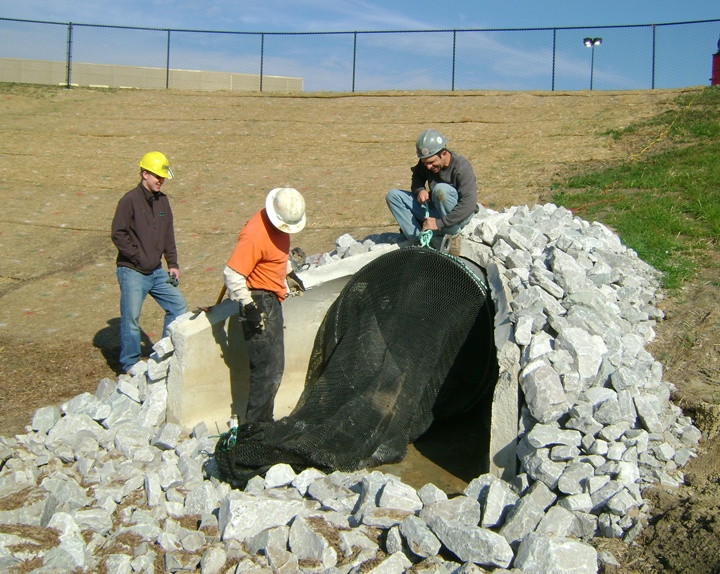

- Hubs are anchored into concrete or attached to existing pipe ends/outfalls
- Commercial grade HDPE nets are durable, reusable and easily maintained
- Nets are minimum 5 feet in length
- Highly effective for “first flush”
- Internationally proven success rate with zero failures for more than 15 years
- Made in the USA
