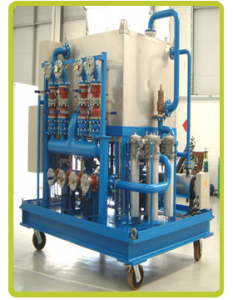

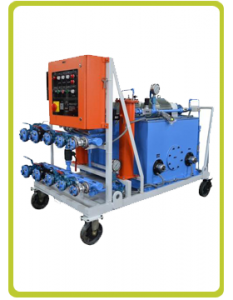

Oil Flushing System
All new projects from steel sector, power sector, cement sector require oil flushing systems during start-up commissioning programme. We supply oil flushing systems with in-built online contamination sensors.
These have been supplied to various on going power projects of the country. These are applicable for Flushing lube oil, turbine oil, eh oil / frf, gear oil, hydraulic oil. Steel plants and cement plants also require such machinery for their project stage.
We are the pioneer in Design & manufacturing of Hot Oil Flusher for Oil & Gas industry.
We can design capacities of upto 20,000 LPM in this range, equipments equipped with SS tank, High Flow pump, heating System, Filtration System, Particle Counter for NAS / ISO detection.
We are engaged in offering an exclusive range of Oil Flushing Systems. Manufactured using superior quality raw material, this range complies with the global quality standards and parameters. This range caters to diverse requirements of various industries like steel, power, cement, many others. These flushing systems are widely used for flushing lube oil, turbine oil, gear oil and hydraulic oil and are highly appreciated by our clients for vast & effective usage. Known for its robust construction, unique design, extraordinary performance, high efficiency and longer functional life, this range has generated an unprecedented demand in the market.
These Ultra High Velocity Pumping Units that deliver maximum velocity and volume (up to 16,500 LPM or 1000 Cum/hr) of Lube Oil that causes the lube oil to become a frictional force through cavitational molecular implosion on the walls of the piping. This frictional force scrubs the inside diameter of the piping, removing varnished-on solid contaminants and sending it downstream to be removed by proprietary 1/2 micron Filtration Systems. This contamination is removed without re-circulating it during the procedure, reducing the duration of the procedure.
Technical Parameters
- Flow rate : 1000 M3/Hour
- Operating pressure : 0.65 Mpa
- Primary Filtration : 60 µ (Pre Filtration)
- Secondary Filtration : 3 µ / 5 µ (Second Stage)
- Backwash function : Yes (Only for Primary Filtration)
- Oil purity after filtering : NAS 7 (As per NAS 1638 Standard)
- Dewatering function : Yes
- Inlet/Outlet : DN250
- Power Supply : 415V / 50 Hz
- Motor Power : 200 KW
- Heating Power : 72 KW
- Total Power : 284 KW
- Dimension : 4100 mm × 2200 mm × 1850mm ( L×W×H )
- Weight : About 9000 Kg
