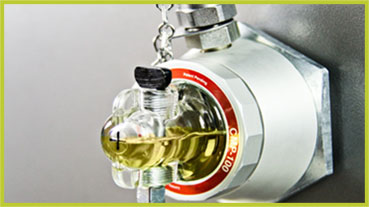

The Condition Monitoring Pod® (CMP®) is a patented multiparameter inspection tool that modernizes and expands daily one-minute inspections. The CMP provides a nearly 360° view of the oil thanks to the ultra-durable, crystal-clear and chemically resistant Tritan™ material. The flat front face is designed for application of a pen light or camera for closer inspection and analysis. A visible corrosion indicator signals when the oil’s chemistry has changed and begun to attack vulnerable metals. A visible magnetic plug is also provided to capture and display ferrous wear debris. Both the corrosion indicator and magnetic plug are removable for further inspection thanks to a rotatable sight glass. And lastly, if lab testing of the oil is required, the CMP has a built-in sampling valve with an attached pilot tube for live-zone sampling.

Specification:

• Application: Oil level ports
• Dimensions: 2.9”L x 2.75”W x 4”H
• Shipping Weight: 1.2 lbs.
• Recommended Temperature: -40°F to 200°F (-40°C to 93°C)
• Recommended Pressure: Low pressure applications
• Sampling/Drain Valves: Standard flow sampling valve (M16x2)
• Materials: Sight Glass: TritanTM (a patented, crystal clear and chemically resistant material); Body: anodized aluminum; Magnet: strong neodymium rare earth magnet; Thread Reducer: zinc-plated steel; Pilot Tube: stainless steel;
• Sampling Valve: zinc-plated steel; O-Rings: Viton™; Gasket: Viton™
• Outdoor Compatibility: UV-resistant to protect against long-term sun exposure
• Chemical Compatibility: Resistant to mineral and synthetic oils that are compatible with fluorocarbon elastomers (Viton™) and PMMA (acrylic) plastic
• Includes: Tritan™ sight glass, Standard flow sampling valve with pilot tube, steel reducer, aluminum body, magnetic plug, steel corrosion indicator and Viton™ Gasket
