Introduction

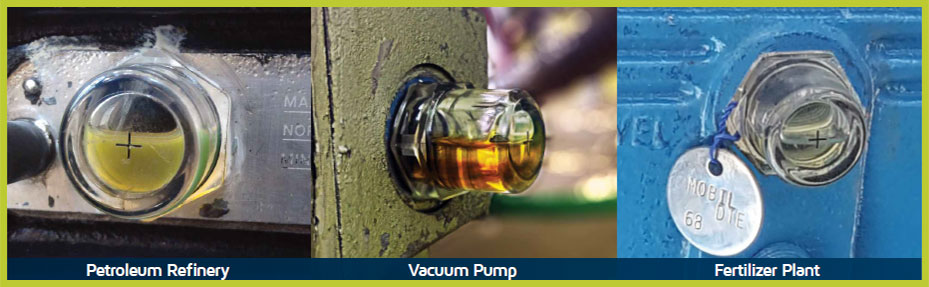

Visual oil analysis allow you to observe the health and level of your lubricants with a clear view of oil clarity and color, sediment, and water contamination in the oil.

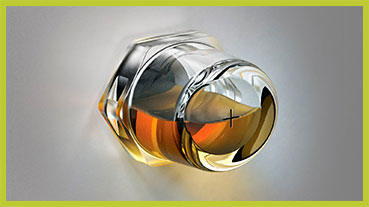

Luneta Sight Glass
Luneta’s new Sight Glass has all the clarity and durability, with none of the leaks, cracks or squinting. Luneta Sight Glass provides a crystal-clear, un-distorted view of in-service oils. This level of clarity is achieved by Luneta manufacturing process and the use of Tritan, which allows for much thinner outer walls than acrylic sight glasses.
The Luneta Sight Glass is 4x stronger than traditional acrylic sight glasses, shatterproof and chemically resistant. In fact, it’s made with a propriety copolyester that is stronger than bulletproof glass. The Luneta Sight Glass can take a beating and withstand harsh environments, including extreme temperatures.

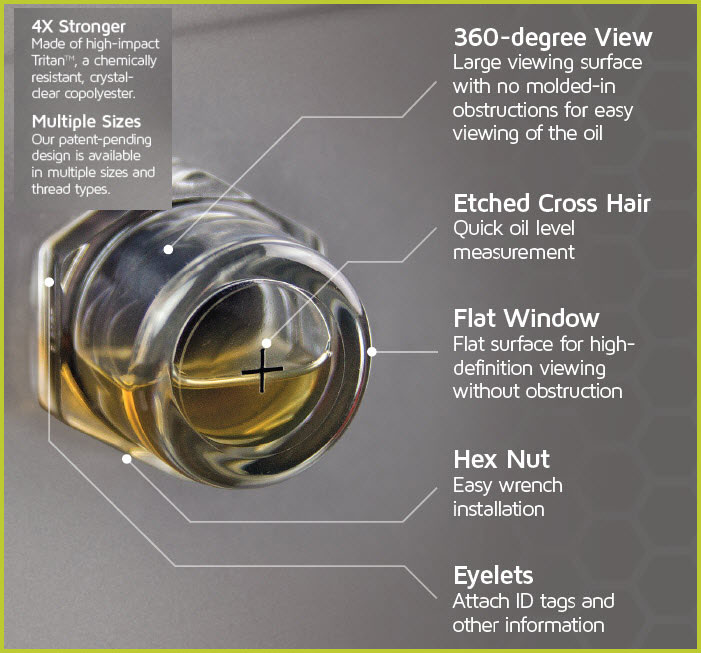

Advantages & Features:
- High Impact Resistance body Material using a material called Tritan – a cyrstal-clear copolyester.
- Temperature Range Handled: -40F to 200F (-40X to 93C).
- Chemical resistant with broad chemical compatibility, while retaining optimum optical properties.
- UV Resistant to protect against long-term sun exposure.
- Tough & durable but with thinner wall design for clearer visual.
Available Models:
Part Number | Description |
SG.025NPT | Luneta Sight Glass, 1/4″ NPT |
SG.038NPT | Luneta Sight Glass, 3/8″ NPT |
SG.050NPT | Luneta Sight Glass, 1/2″ NPT |
SG.075NPT | Luneta Sight Glass, 3/4″ NPT |
SG.100NPT | Luneta Sight Glass, 1″ NPT |
SG.025BNPT | Luneta Sight Glass, 1/4″ NPT |
SG.038BNPT | Luneta Sight Glass, 3/8″ NPT |
SG.050BNPT | Luneta Sight Glass, 1/2″ NPT |
SG.075BNPT | Luneta Sight Glass, 3/4″ NPT |
SG.100BNPT | Luneta Sight Glass, 1″ NPT |
SG.M10x10 | Luneta Sight Glass, M10x1.0 |
SG.M10x15 | Luneta Sight Glass, M10x1.5 |
SG.M12x15 | Luneta Sight Glass, M12x1.5 |
SG.M16x15 | Luneta Sight Glass, M16x1.5 |
SG.M20x15 | Luneta Sight Glass, M20x1.5 |
SG.M22x15 | Luneta Sight Glass, M22x1.5 |

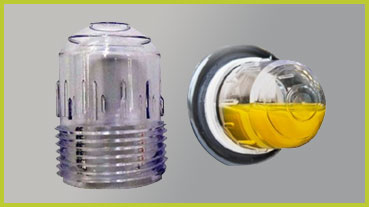

CheckFluid’s 3D Bulls Eye Sight Glass
CheckFluid’s 3D Bulls Eye offers a 360 degree of oil level view.
Benefit & Features:
- Quick oil level inspection
- Easy to see oil level with 360° view bull’s-eye offers
- Replaces brass & glass, flush-mounted sight windows for better viewing
- Meets space limitations
- Installs in minutes
Specification:
- 1/2″ NPT and above are cast acrylic or nylon co-polymer with male threads
- 1/4″ and 3/8″ NPT come with female threads and brass nipples included
- All metric sizes come with female threads, brass nipple and gasket included
- Max. Operating Pressure: 65 psi (.44 MPa)
- Max. Temperature: 200°F (93°C)
- Minimum Temperature: -40°F (-40°C)
Available Models:
Part Number | Description |
C3DB0250VM | 3D Bulls Eye Sight Glass, 1/4″ NPT, Acrylic |
C3DB0375VM | 3D Bulls Eye Sight Glass, 3/8″ NPT, Acrylic |
C3DB0500VM | 3D Bulls Eye Sight Glass, 1/2″ NPT, Acrylic |
C3DB0750VM | 3D Bulls Eye Sight Glass, 3/4″ NPT, Acrylic |
C3DB1000VM | 3D Bulls Eye Sight Glass, 1″ NPT, Acrylic |
C3DB1250VM | 3D Bulls Eye Sight Glass, 1 1/4″ NPT, Acrylic |
C3DB1500VM | 3D Bulls Eye Sight Glass, 1 1/2″ NPT, Acrylic |
C3DB2000VM | 3D Bulls Eye Sight Glass, 2″ NPT, Acrylic |
C3DB0250KVM | 3D Bulls Eye Sight Glass, 1/4″ NPT, Transparent Polyamide |
C3DB0375KVM | 3D Bulls Eye Sight Glass, 3/8″ NPT, Transparent Polyamide |
C3DB0500KVM | 3D Bulls Eye Sight Glass, 1/2″ NPT, Transparent Polyamide |
C3DB0750KVM | 3D Bulls Eye Sight Glass, 3/4″ NPT, Transparent Polyamide |
C3DB1000KVM | 3D Bulls Eye Sight Glass, 1″ NPT, Transparent Polyamide |
C3DB1250KVM | 3D Bulls Eye Sight Glass, 1 1/4″ NPT, Transparent Polyamide |
C3DB1500KVM | 3D Bulls Eye Sight Glass, 1 1/2″ NPT, Transparent Polyamide |
C3DB2000KVM | 3D Bulls Eye Sight Glass, 2″ NPT, Transparent Polyamide |
CheckFluid’s Bottom Sediment & Water Sight Glass
CheckFluid’s 3D Bulls Eye offers a 360 degree of view for bottom sediment and water.
Benefit & Features:
- Strong polyamide material will withstand the toughest environments
- UV Resistant
- Indication Marks: visually inspect and monitor rate of accumulation of water in the oil sight glass
- Sediment Drainage: a sloped floor for better evacuation and resetting of the oil sight glass
- Dual-Mount Versatility: the sight glass can be installed horizontally or vertically
